Technical Parameters:
Display: Multi-line backlit LCD
Measurement Range: 0 - 100 NTU
Measurement Principle: Turbidimetric method (90-degree detection angle)
Accuracy:
Resolution: 0.001 NTU (below 10 NTU)
Light Source: White light
Response Time: Adjustable
Electrical: Power Supply 100 - 240 VAC, 47 - 63 Hz, 80 VA
Standard Outputs: DC-isolated 4-20 mA and RS-485
Alarm Outputs: Two user-configurable high/low switch outputs
General Parameters: Flow Rate 100 ml/min - 1 liter/min (0.026 - 0.26 GPM)
Wetted Materials: Glass, Silicone, ABS plastic
Enclosure: NEMA 4X, IP66 rated
Dimensions: 35 cm x 30 cm x 30 cm (14" x 12" x 12")
Shipping Weight: 2.5 kg (5.5 lbs)
Environmental Conditions:
Storage Temperature: -20°C to 60°C (-4°F to 140°F)
Operating Temperature: 1°C to 50°C (34°F to 122°F)
Sample Liquid Temperature: 1°C to 50°C (34°F to 122°F)
Inlet Pressure: 1 - 200 psi (built-in pressure regulator set at 15 psi)
Standards & Certifications: Complies with U.S. EPA Method 180.1, CE certified
Warranty Period: One year from date of shipment
Ordering Guide:

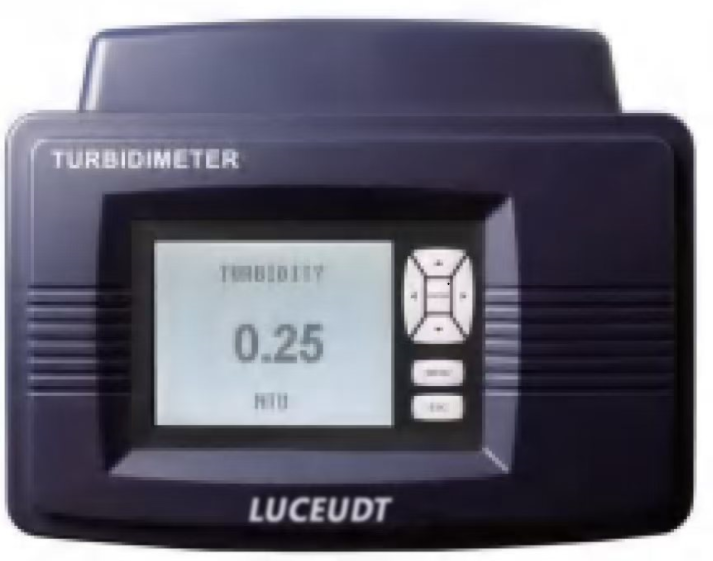

Turbidity Analyzer: LU620-L, 0-100 NTU range
Standard Solution Set: LU622.1 (includes 0.02 NTU, 10 NTU, and 100 NTU standards)
