Technical Description:

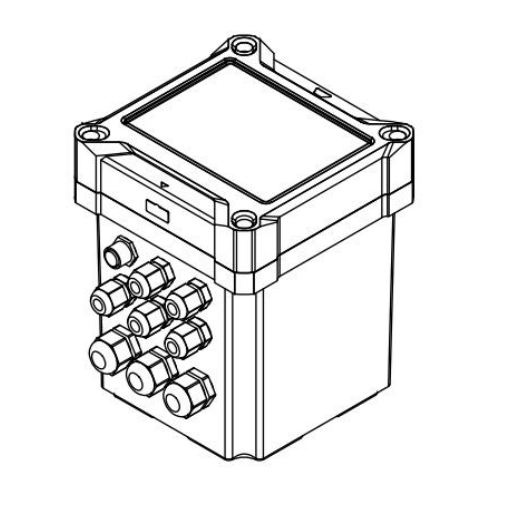

The LuceUdt 6208 Controller is a digital universal controller designed for industrial online monitoring, measurement, and automatic control. It can be easily integrated into customers' existing systems and is compatible with various sensors available on the market. The LU300 device features a modular design, significantly enhancing future functional expansion capabilities, and allows for customization with various sensor and electrode measurement modules. The LU300 is equipped with a modern 5.7-inch touchscreen that offers an exceptionally comfortable tactile experience. With its high-resolution display and sensitive touch response, the user operation experience is greatly improved. Additionally, the device boasts a stylish titanium gold metal appearance paired with the large touchscreen, giving its design a strong technological aesthetic.

Technical Data:

1. Component Description: Microprocessor controls and processes sensor acquisition values and displays measurements.

2. Operating Temperature: -10 to 70°C (-14 to 158°F), 0-95% relative humidity, non-condensing.

3. Enclosure: Metal housing with anti-corrosion finish.

4. Power Requirements: AC Power Supply: 100–240 VAC, 50/60 Hz; Power 25W, capable of driving 10W sensors.

5. Load Module: RS485 optional.

6. Sensor Channels: 1, 2, 3, or 4 channels optional (options include 485 digital signal channel, pH analog signal channel, conductivity signal channel, 4-20mA input signal channel).

7. Relays: Four relays (SPDT), AC controller max. switching voltage: 100 - 250 VAC.

8. Dimensions: 144 x 144 x 176 mm (5.67 x 5.67 x 6.93 in.).

9. Weight: 2 kg.

10. Compliance Information: Certified according to European Community Standards (CE Marking).

11. Digital Communication: Modbus, RS485 optional.

12. Data Logging: Data logging and software updates possible via USB Type-C interface.

13. Warranty Period: Two years.

Ordering Guide:

1. Single-Channel pH/ORP Controller: 6208.00.00101 | 100-240VAC power supply, 4-20mA output.

2. Single-Channel Conductivity/Resistivity Controller: 6208.00.00201 | 100-240VAC power supply, 4-20mA output.

3. Single-Channel Digital Controller: 6208.00.00501 | 100-240VAC power supply, 4-20mA output.

4. Dual-Channel Digital Controller: 6208.00.00521 | 100-240VAC power supply, 4-20mA output.

5. Multi-Channel Combination Controller: 6208.00.005511 | 100-240VAC power supply, 4-20mA output; Supports up to 4 channels.
