Product Overview:

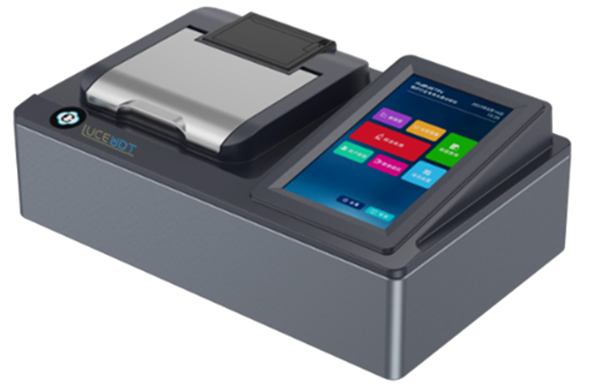

The Lucent LU-7700 Turbidity Meter is used to measure pollutant indicators in water quality. It is suitable for various fields including environmental pollution source monitoring, industrial process water monitoring, municipal sewage treatment, surface water monitoring, as well as industries such as biopharmaceuticals, sewage treatment, and mining.
---
Typical Applications:
· Sewage Treatment
· Coal Mining & Metallurgy
· University Research
· Biopharmaceuticals
---
Performance Features:
· 7-inch color touch screen for easy operation and clear interface.
· Built-in thermal printer for convenient on-demand printing.
· Built-in rechargeable battery, plug-and-play operation.
· Control board with USB interface for strong expandability.
· Utilizes multi-color light source and compensates for background noise and other interfering factors, ensuring high measurement accuracy.
· Can store no less than 100,000 test data records, facilitating easy traceability of historical data.
---
Technical Specifications:
Parameter |
Specification |
Turbidity |
Measurement Range |
LR: 0-200 NTU; HR: 200-2000 NTU |
Resolution |
0.001 NTU |
Measurement Accuracy |
Settable between 1mg/L and 0.001mg/L. |
Input & Display |
7-inch color touch screen |
Light Source (Detector) |
Light-emitting diode |
Test Modes |
Absorbance (Abs) and Concentration (Conc) |
Measurement Error |
≤3% |
Measurement Repeatability |
≤5% |
Sample Cell |
Φ16mm, Φ25mm / 10mL round cuvettes |
Interfaces |
USB A × 2, USB B × 1, RS485 × 1 |
Power Requirements |
220V 50Hz |
Dimensions |
341 × 207 × 134 mm, 3200 g |
---
Ordering Guide:
LU-7700 Benchtop Turbidity Analyzer, includes 10 digestion and colorimetric combo tubes, one charger set, one USB data cable, one power adapter set, one instruction manual, and one certificate of conformity/warranty card.
