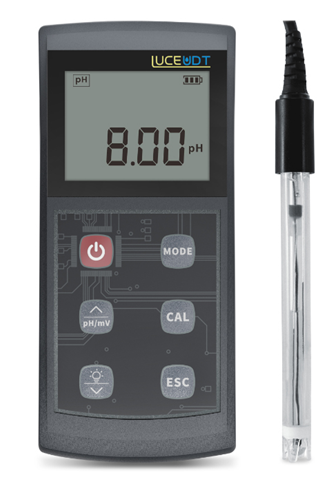

Portable pH/ORP Meter





Product Overview:

The Portable pH/ORP Meter is an intelligent analytical instrument suitable for use in industries such as petrochemicals, pharmaceuticals, power plants, environmental protection, universities, and research institutions. It can measure the pH value of aqueous solutions, as well as the Oxidation-Reduction Potential (ORP) and temperature of the solution. Featuring a modern design, this instrument is lightweight and easy to carry, making it ideal for both laboratory and field applications.


Typical Applications:


· Environmental Monitoring

· Industrial Wastewater

· University Research

· Aquaculture


Performance Features:


· Continuous measurement, fast response

· Lightweight, easy to carry

· One-key calibration, simple operation

· Data logging, easy to view

· Automatic temperature compensation

· Backlit display, suitable for various working conditions



Parameter Specification:


pH

Range

0.00~14.00 pH

Resolution

0.01 pH

Accuracy

±0.01 pH

ORP

Range

-1999~1999 mV

Resolution

1 mV

Accuracy

±0.1% F.S

Power Supply

3 × AAA Batteries

Dimensions

165×75×51 mm

Weight

270 g (excluding batteries)

Electrode Cable

 Length 12 meters

---


Ordering Guide:


· LU-P220  Portable pH analyzer, includes main unit and pH electrode.

· LU-R220  Portable ORP analyzer, includes main unit and ORP electrode.

· LU-PR220  Portable pH/ORP analyzer, includes main unit and pH/ORP electrode.

· LU-P220B: Carrying case for the portable pH analyzer.

P220-B: pH buffer solution

R220-B: ORP buffer solution
