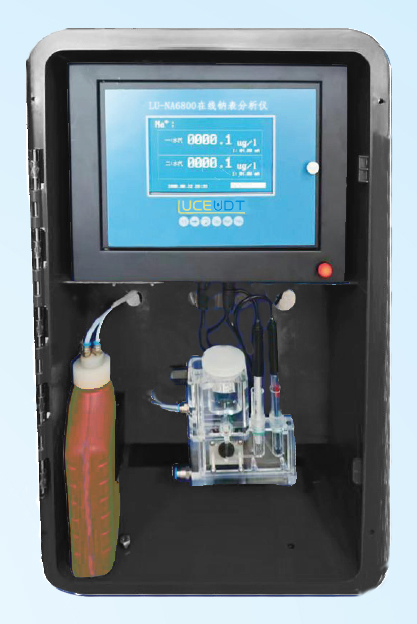

Online Sodium Ion Analyzer

Product Overview:
The LUCEUDT sodium ion analyzer continuously measures (trace) sodium ion content in highly acidic aqueous solutions. It is a specialized instrument for monitoring cation exchange beds.

Typical Applications:
▪ Suitable for industries such as power, metallurgy, chemical, electronics, building materials, and pharmaceuticals where water desalination and softening are achieved via ion exchange.

Performance Features:
▪ Capable of measuring four water samples simultaneously
▪ No cross-contamination between water samples
▪ Touchscreen operation
▪ Adjustable measurement interval settings
▪ Eliminates discrete errors between glass electrodes
▪ Reduces reagent consumption and maintenance workload

Technical Parameters:

• Range: Auto-ranging switching, 0.1~9999 μg/L

• Accuracy: ±0.01 PNa

• Display Units: μg/L, °C, PNa, pH, mV

• Resolution: 0.1 μg/L

• Signal Output: Four isolated 4~20mA channels

• Sample Conditions:

• Temperature: 5~45°C

• Pressure: 0.1~0.3 MPa

• Flow Rate: >120 mL/min

• Operating Conditions:

• Temperature: 0~50°C

• Humidity: ≤85%

• Power Supply: ~220V, (50±1)Hz

Ordering Guide:

• LU-NA6800-I: Single-channel sodium analyzer, 220V

• LU-NA6800-II: Dual-channel sodium analyzer, 220V

• LU-NA6800-IV: Four-channel sodium analyzer, 220V

• LU-NA7800: Single-channel sodium analyzer for cation exchange beds, 220V

• LU-NA6801: Reagent Kit 1 Assembly
