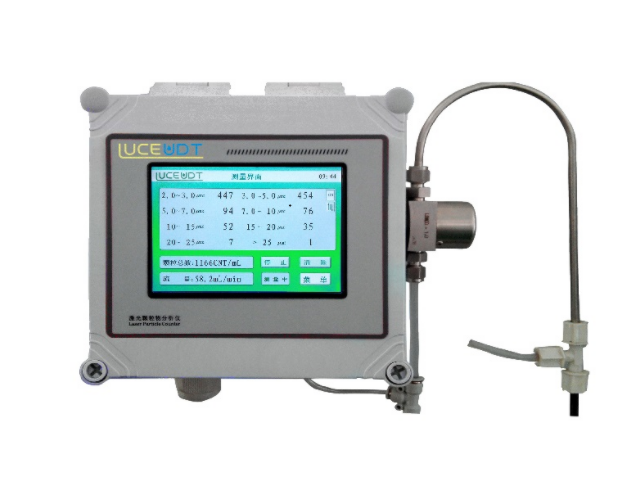

Product Description:

The measurement results from the laser particle analyzer directly reflect the distribution of particles in water, indicating both particle size and corresponding count. Especially in low-turbidity conditions, the particle analyzer provides a more accurate representation of water quality.

Typical Applications:

• Particle monitoring in finished drinking water

• Membrane integrity monitoring in membrane-based water treatment processes

• Microbial leakage monitoring in advanced activated carbon treatment processes within the drinking water industry

• Biological risk assessment of finished water at treatment plants, including surrogate monitoring for "Two Cysts" (Cryptosporidium and Giardia)

• Evaluation of filter efficiency in water treatment plants

• Particle monitoring in drinking water distribution networks.

Technical Parameters:

• Measurement Principle: Light Extinction / Light Obscuration

• Particle Size Range: 2 – 400 µm

• Sample Flow Rate: 60 mL/min

• Sensitivity: 2.0 µm

• Count Compensation Method: Flow-based compensation

• Particle Count Relative Error: ±10% or ≤5 CNT/mL, whichever is greater

• Particle Count Repeatability: ≤3% or ≤10 CNT/mL, whichever is greater

• Zero Drift: ≤5 CNT/mL

• Data Storage: Approximately 60,000 measurement records

• Communication: Modbus RS485, 4-20 mA output

• Operating Temperature: 0 ~ 50 °C (non-condensing)

• Relative Humidity: 18 ~ 90% RH (non-condensing)

• Power Supply: 100-230 VAC; 50-60 Hz

• Installation Method: Wall-mounted
