Technical Description:

The sensor operates on the fluorescence measurement principle. The tip of the sensor is coated with a fluorescent substance. When the blue light emitted by the sensor illuminates this substance, it becomes excited and emits red light. Since oxygen molecules can carry away energy (quenching effect), the intensity and duration of the emitted red light are inversely proportional to the concentration of oxygen molecules. The dissolved oxygen concentration in water is calculated based on this relationship.

Technical Features:

• Fluorescence-based dissolved oxygen sensor.

• Plug-and-play functionality allows for quick and easy sensor installation and replacement.

• Breakthrough fluorescence technology eliminates the need for membranes and electrolytes, requiring minimal maintenance.

• Measurement does not consume oxygen and has no flow/agitation requirements.

• Utilizes a new oxygen-sensitive cap with integrated temperature compensation.

• Provides excellent measurement repeatability and stability.

• Built-in self-diagnostics function ensures data accuracy.

• Factory calibrated, typically requiring no calibration for one year; supports field calibration.

• Protection rating of IP68.

Technical Parameters:

• Measurement Parameters: Dissolved Oxygen, Temperature

• Measurement Range: 0-20 mg/L, 0-50 °C

• Resolution: 0.1 mg/L, 0.01 °C

• Accuracy:

• DO: ±0.1 mg/L (< 5 mg/L), ±0.2 mg/L (≥ 5 mg/L)

• Temperature: ±0.2 °C

• Pressure Range: Maximum pressure limit of 50 psi (3.44 bar) at 34 meters.

• Temperature Compensation: Automatic, 0-50 °C.

• Calibration Methods:

• Air Calibration: Saturation in air.

• Sample Calibration: Comparison with a reference instrument.

• Response Time: T90 < 60 seconds.

• Materials of Construction: 316L, PPS, FKM (Fluorocarbon Elastomer).

• Dimensions & Weight: 50 mm Diameter x 240 mm Length, approx. 1.33 kg.

• Connection: 1" NPT threaded connection.

• Protection Rating: IP68.

• Installation Method: Submersible installation.

Ordering Guide:

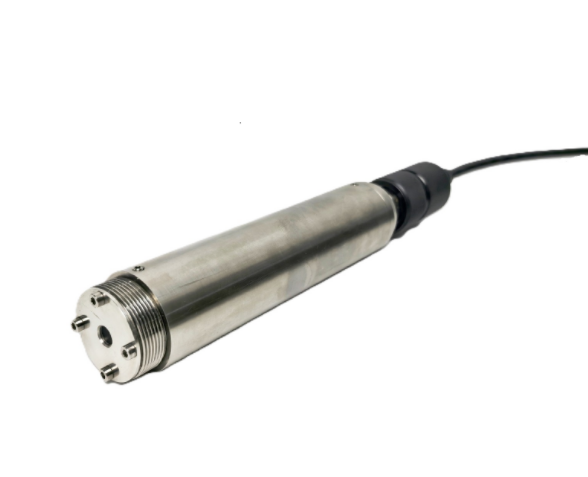

• LU-DO-70101: Dissolved Oxygen Sensor

• LU-YGM: Sensor Fluorescent Cap
