Technical Description:

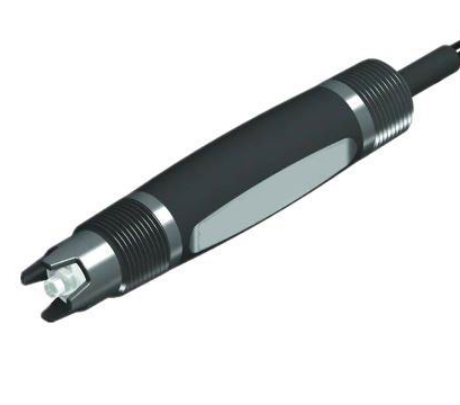

This pH/ORP electrode is designed for wastewater monitoring and high-reliability purified water monitoring. It can be installed via submersion or in-pipe mounting to measure various water qualities.

Technical Features:

• Unique salt bridge design enhances the electrode's anti-fouling capability in harsh working conditions.

• Excellent corrosion resistance from wetted materials such as PPS, Teflon (PTFE), and glass.

• Resistant to high temperatures.

• Automatic temperature compensation (ATC).

• Built-in solution ground improves measurement stability.

Technical Parameters:

• Measurement Range: pH: 0-14; ORP: ±2000 mV

• Wetted Materials: PPS, Teflon (PTFE), Glass

• Process Connection: 3/4" NPT thread

• Temperature Range: 0-105 °C

• Pressure Range: 0-10 bar (150 psi)

• Cable Length: Standard 20 feet (6 meters, customizable)

• Reference System: Ag-AgCl

• Sample Flow Velocity: ≤ 3 m/s

• Output Impedance: < 250 MΩ (at 25 °C)
